A Tractor Paint Restoration Example That Lasts

A working tractor rarely fades evenly. The bonnet may be chalky from years outdoors, while the mudguards carry scratches, rust spots and old touch-ups in several shades. This tractor paint restoration example shows how to take a tired but sound machine from patchy and weathered to a clean, durable finish using correctly matched aerosol paint, careful preparation and sensible panel-by-panel working.

This is not a case of spraying colour over dirt and hoping for the best. Agricultural equipment lives a hard life around moisture, oil, fertiliser, grit and repeated washing. The finish has to look right, but it also needs a properly prepared surface beneath it.

The starting point: faded paint, surface rust and sound metal

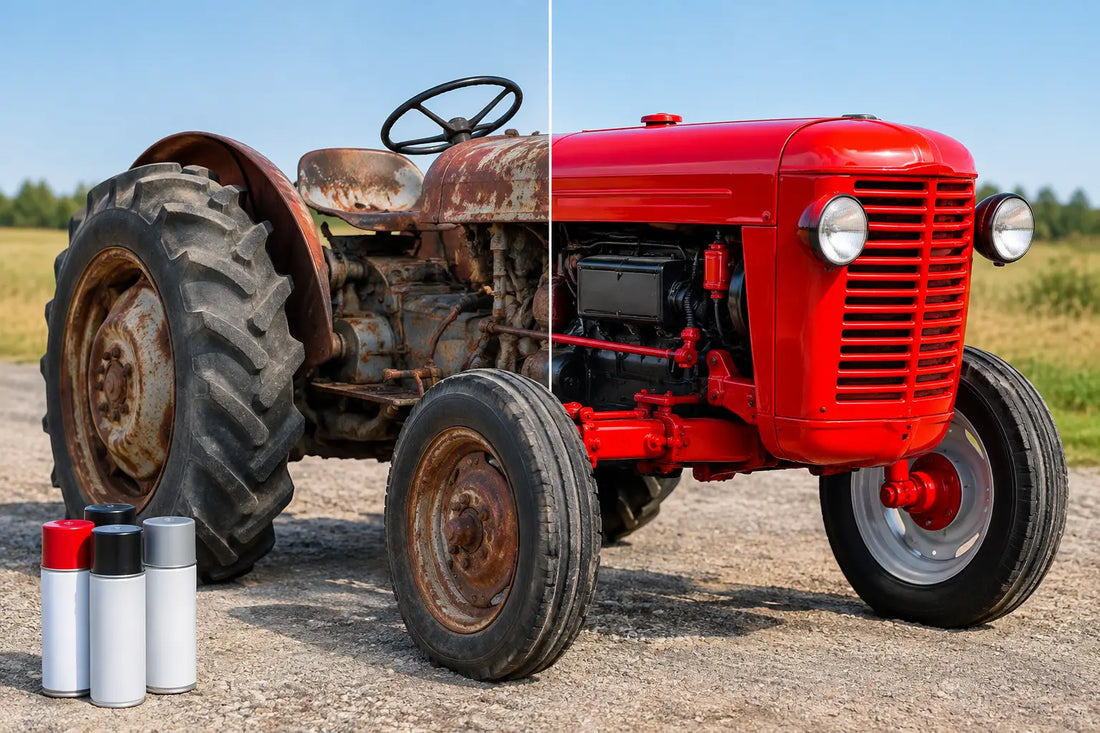

Picture a compact tractor with an original red body, grey wheels and a black chassis. It still runs well, so a full strip-down restoration is unnecessary. The aim is to revive the visible panels, protect exposed steel and make the tractor presentable for regular use or resale.

The bonnet has lost its gloss and feels powdery to the touch. Both rear mudguards have rust breaking through at their lower edges, where mud has sat against the metal. There are a few dents, but nothing severe enough to justify major panel work. The wheel centres are scuffed, while the tyres are in good order and can be masked.

That assessment determines the job. Sound, faded paint can often be cleaned, keyed and refinished. Rust needs removing back to solid material first. Any loose coating, corrosion or contamination left underneath will shorten the life of even the best topcoat.

Tractor paint restoration example: the preparation process

Preparation accounts for most of the result. Rushing this stage is the usual reason fresh paint flakes, reacts or shows every scratch once it dries.

Start with a thorough wash to remove soil, grease, oil and old polish. Let the tractor dry fully, especially around seams, bolt heads and folded panel edges. Degrease the work area again before sanding. Agricultural machinery often carries oily residue in places that look clean at first glance.

The faded bonnet and mudguard surfaces should then be sanded to create a uniform key. A medium abrasive is suitable for flattening rough old paint and feathering chips; a finer abrasive follows to reduce sanding marks before primer or colour. Sand rusty areas until only firm metal and firmly bonded coating remain. If corrosion has created holes or badly thinned steel, repair the metal before reaching for paint.

Masking matters more than it may seem. Remove badges, lights, handles and easy-to-unbolt trims where practical. Mask tyre sidewalls, hydraulic fittings, engine openings, glass and wiring. Spraying around parts instead of removing or masking them properly leaves hard edges and overspray that makes an otherwise tidy restoration look unfinished.

Treat bare metal before applying colour

Any exposed steel needs a suitable primer. Primer gives the colour coat a stable surface to grip and helps isolate repaired or bare areas from moisture. Apply it in light, even passes rather than trying to cover in one heavy coat.

Once dry, lightly flatten the primed repair so its edge blends into the surrounding panel. Run a hand across the surface with a clean glove on. Your fingertips will find raised paint edges and sanding ridges more reliably than your eyes, particularly on a dull grey primer.

Do not use primer as a shortcut for poor preparation. It will not fill deep corrosion pits, thick paint edges or dents on its own. A smooth finish begins with a smooth substrate.

Matching the tractor colour without guesswork

The right red, green, blue or grey is rarely as simple as choosing by name. A tractor may have been repainted before, its original colour may have weathered, and different production years can vary. For a partial repair, a near match that looks acceptable in the workshop can stand out sharply in daylight.

The most dependable starting point is the manufacturer's paint reference, where it is known. If that is unavailable, use a clean protected section of the original finish - often behind a panel, beneath a badge or inside a cover - as the comparison point. Photographing paint with a mobile phone is not a reliable colour-matching method because lighting, camera settings and screens alter what you see.

For this example, the owner identifies a close original colour reference for the body panels and selects a specialist aerosol formula suitable for agricultural equipment. A professionally blended 400ml aerosol gives the convenience needed for a manageable restoration while avoiding the compromise of a generic off-the-shelf red.

Colour matching is particularly worthwhile when restoring only the bonnet and mudguards. If every painted panel is being refinished, there is more freedom to choose a period-correct shade, provided the same colour is used consistently throughout.

Applying aerosol paint for an even finish

Choose a dry day with moderate temperatures and good ventilation. Cold metal can encourage poor flow and slow drying, while direct hot sun can make paint flash off too quickly. Avoid spraying in a dusty barn, near grinding work or where insects and airborne debris are likely to land on wet paint.

Shake the aerosol thoroughly for the stated time, then test the spray pattern on card. This confirms that the nozzle is clear and lets you judge the fan before approaching the tractor. Hold the can at a consistent distance from the panel and begin moving before pressing the nozzle. Release the nozzle after the pass has travelled beyond the panel edge.

On the bonnet, apply a light tack coat first. It should look thin and slightly dry rather than fully glossy. After the appropriate flash-off time, follow with further medium coats, overlapping each pass evenly. Build colour gradually until coverage is uniform.

The mudguards deserve extra attention around rolled edges and lower corners. These areas are easy to miss, but they also receive the most punishment from mud and boots. Spray edges lightly from more than one angle, rather than flooding them with paint. Heavy aerosol application causes runs, solvent trapping and a finish that can remain soft longer than expected.

A useful rule is to maintain a wet edge without chasing shine. If a coat looks slightly less glossy while wet, leave it alone. One more controlled coat after the correct interval is far easier to manage than correcting a sagged panel.

What to do if the finish goes wrong

Small dry patches can often be improved with the next coat if caught early. Dust nibs, minor orange peel or an occasional run should be left until the paint has hardened properly. Trying to wipe, sand or polish fresh paint usually creates a larger repair.

Once fully cured, a run can be carefully flattened with a fine abrasive and refined where appropriate. If there is a serious reaction - lifting, wrinkling or fish-eyes - stop spraying. The cause is usually contamination, incompatible old coatings or insufficient preparation. Let the panel dry, remove the failed area back to a stable surface and rebuild it correctly.

Finish choices and practical compromises

Original tractors were not always finished to modern car-show standards. A working restoration often looks most convincing with a durable gloss or a controlled satin finish on appropriate components, rather than a mirror-like result on every surface. Chassis parts, brackets and wheel centres may need a different coating approach from the bonnet and mudguards because they experience more abrasion and contamination.

Decide early whether the tractor is a showpiece, a regular working machine or a sale-ready refurbishment. A working tractor benefits from prioritising corrosion protection, clean colour coverage and easy future touch-ups. A display restoration may justify removing more components, correcting every dent and spending longer on panel refinement.

Either way, allow the new finish to cure before washing, refitting parts or putting the tractor back into heavy service. Fresh paint may feel dry on the surface while still hardening underneath. Reattaching a sharp-edged badge or dragging a hose across a newly painted mudguard too soon can undo careful work.

A well-planned tractor restoration does not need a spray booth or a full repaint to make a visible difference. Start with the worst panels, use paint matched to the colour and substrate, and give preparation the time it deserves. The result is a tractor that looks cared for, is better protected from the next wet season and remains straightforward to touch up when work inevitably leaves its mark.
