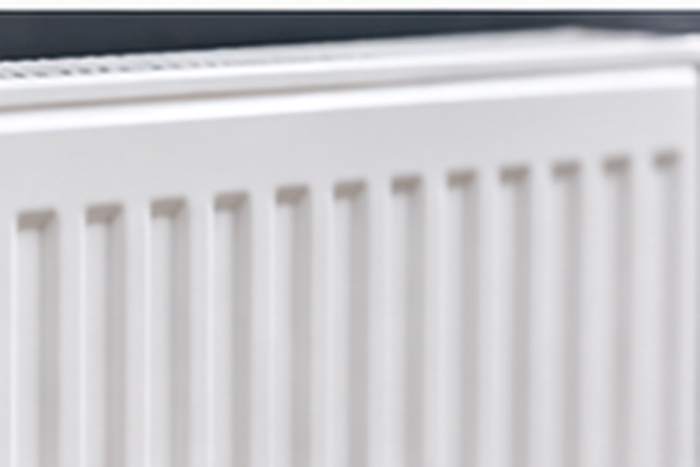

Pressed-steel panel radiators
Common modern panel radiators usually have a factory coating that can often be recoated when it is sound, clean, compatible and evenly abraded.
Project Guides
How to Spray Paint a Radiator
Prepare and refinish pressed-steel, cast-iron and compatible aluminium radiators using the correct cleaning, abrasion, primer and radiator-paint system. Keep the radiator cold throughout application and follow the exact product instructions before returning it to service.
Project guide
A professional radiator finish starts before the first coat
Radiators collect dust, polish and airborne contamination, and their profiles make rust, loose coating and missed preparation easy to overlook. Heat cycles can also expose weaknesses in an unsuitable or poorly cured coating system.
Identify the radiator material and existing finish, remove unstable material, clean and abrade thoroughly, then use a compatible primer and radiator coating. The product label, TDS and SDS take priority over general advice.
Identify the radiator and starting condition
What are you preparing?
The material, profile and condition of the existing coating determine the preparation, primer and product route.

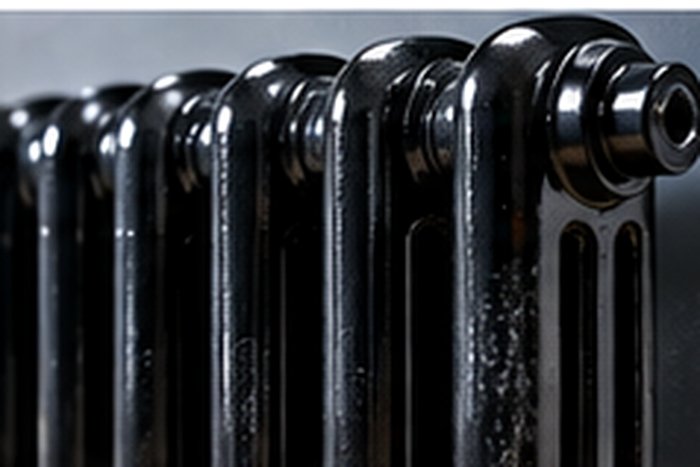

Cast-iron radiators
Ornate columns, joints and pitted areas demand careful rust removal, cleaning and access before primer or colour is applied.

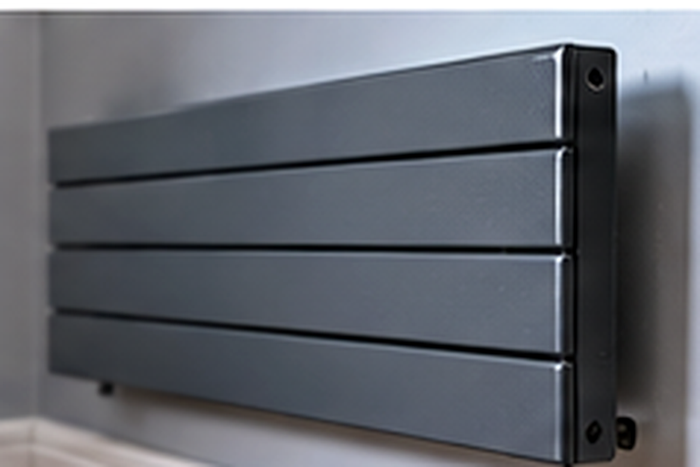

Aluminium designer radiators
Identify the aluminium or factory-coated finish and use only a preparation and adhesion route approved for that exact surface.

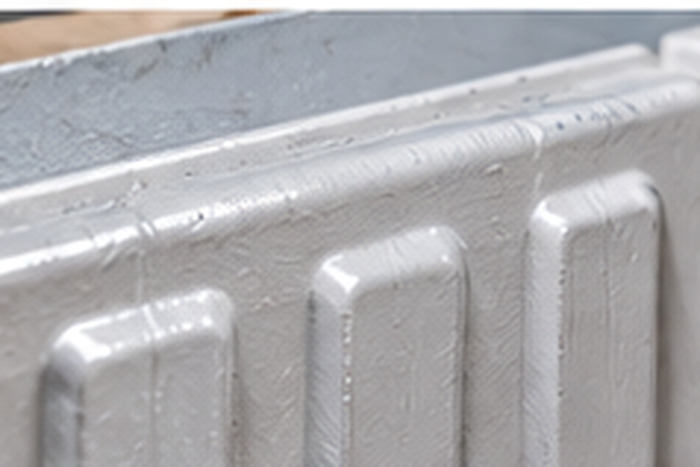

Sound existing paint
A firmly attached compatible coating may be cleaned, keyed and recoated without stripping the entire radiator.

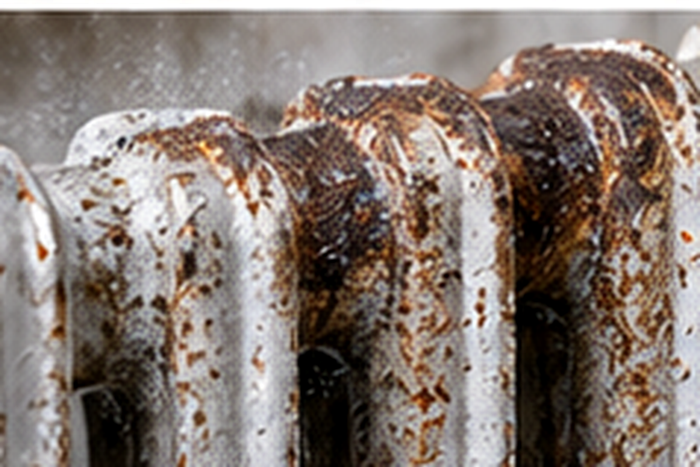

Bare metal and rust repairs
Exposed metal, corrosion and repaired areas need thorough preparation and a compatible primer where the system requires it.

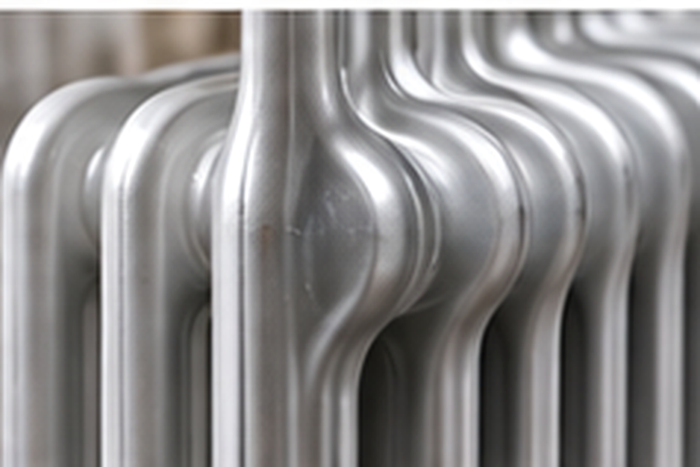

Profiles, columns and recesses
Deep fins, decorative details and rear faces increase preparation time, overspray and the quantity of paint required.
Preparation and product checks
What to confirm before spraying
Plan the coating system, cleaning, abrasion, masking, primer, ventilation and PPE before the first aerosol is used.

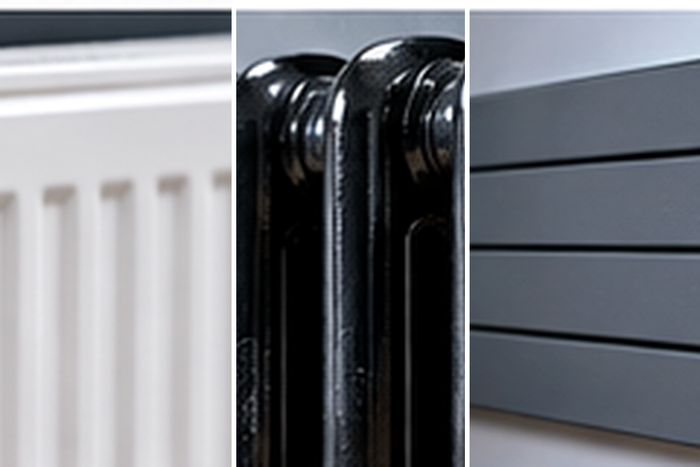

Radiator and coating identification
Confirm the radiator material, existing finish, condition and whether any earlier coating is unknown or unstable.

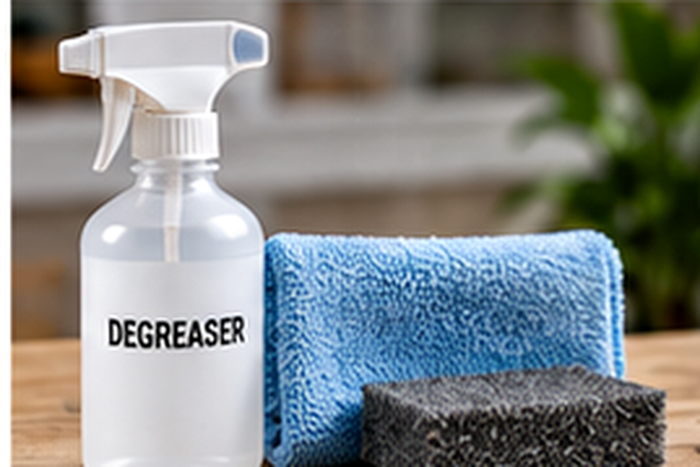

Cleaner and lint-free cloths
Use a compatible degreaser and fresh cloths to remove dust, polish, grease and household contamination.
Abrasives and rust-removal tools
Select abrasives that remove loose material and gloss without cutting unnecessarily into sound metal or profiles.

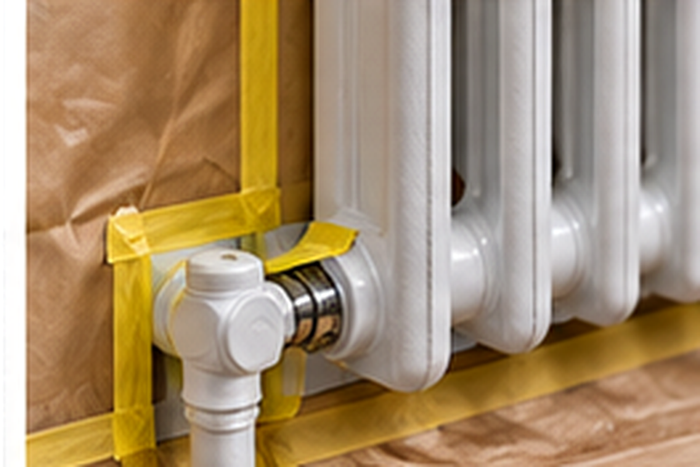

Masking and room protection
Protect walls, floors, valves, threads, bleed screws, pipework and nearby furniture from overspray.

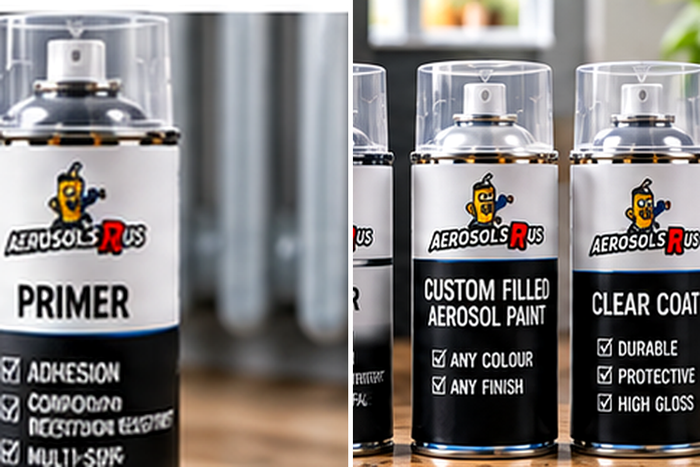

Primer and colour system
Use the correct primer only where required and ensure the colour coat is approved for the substrate and radiator service.
Ventilation and PPE
Read the SDS and provide suitable ventilation, gloves, eye protection and respiratory protection for the products used.
Step-by-step
How to spray paint a radiator
Work methodically from inspection and preparation through to controlled coating and full cure before the radiator is returned to service.

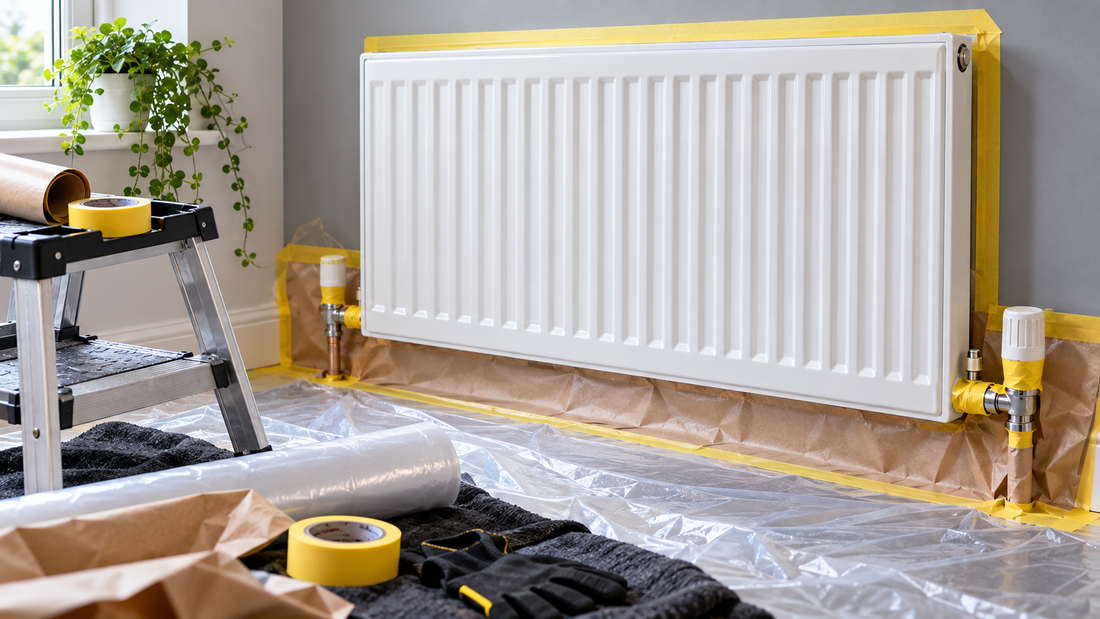

Switch off the heating and prepare the work area
Turn the heating off and allow the radiator and nearby pipework to become completely cold. Provide ventilation and protect the room before any cleaning, sanding or spraying begins.
If the radiator is removed, plumbing and lifting should be carried out only by someone competent.

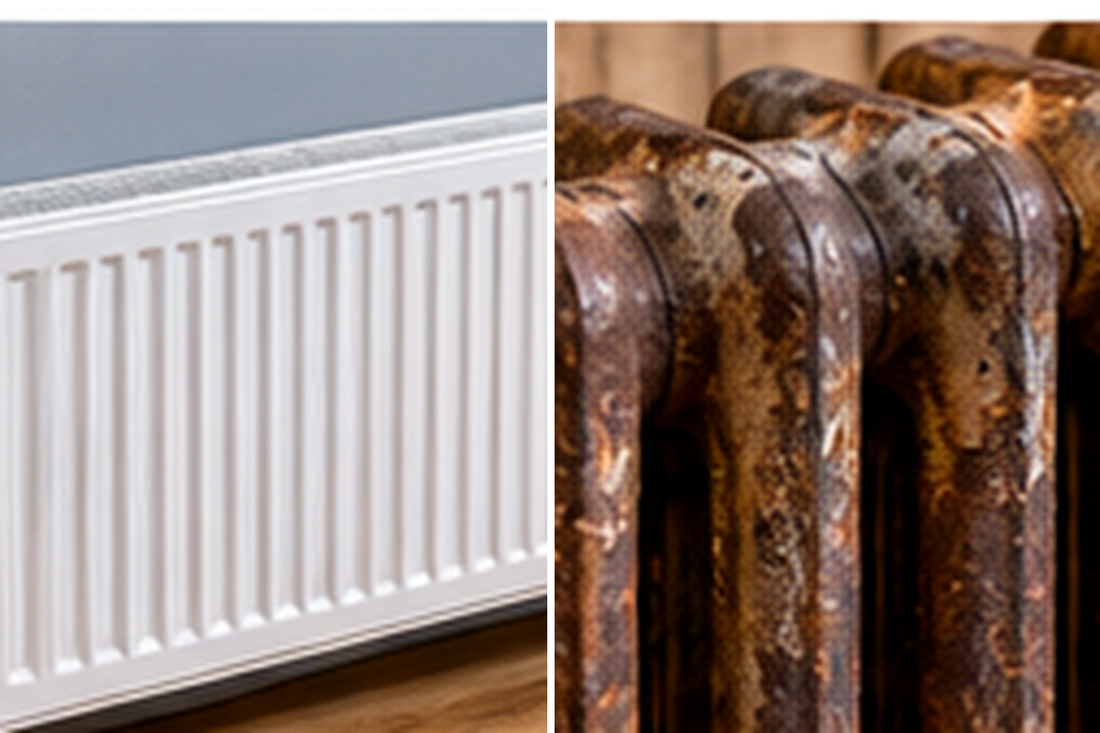

Inspect the radiator and identify the surface
Check the material, existing coating, rust, flaking paint, dents, leaks and repaired areas. Establish whether the finish is sound and compatible or whether weak coating must be removed.
Do not coat a leaking or structurally damaged radiator; arrange the necessary repair first.
Clean and degrease thoroughly
Remove dust, polish, grease and household contamination using a cleaner compatible with the surface and coating system. Use fresh lint-free cloths and allow the cleaner to evaporate fully.
Contamination left around fins, joints and lower edges can cause local adhesion failure.
Remove rust, repair defects and abrade
Remove loose rust and unstable paint, feather repair edges and abrade all sound glossy coating to create an even key. Pay particular attention to profiles, rear faces and hard-to-reach areas.
Remove every trace of sanding dust before proceeding.

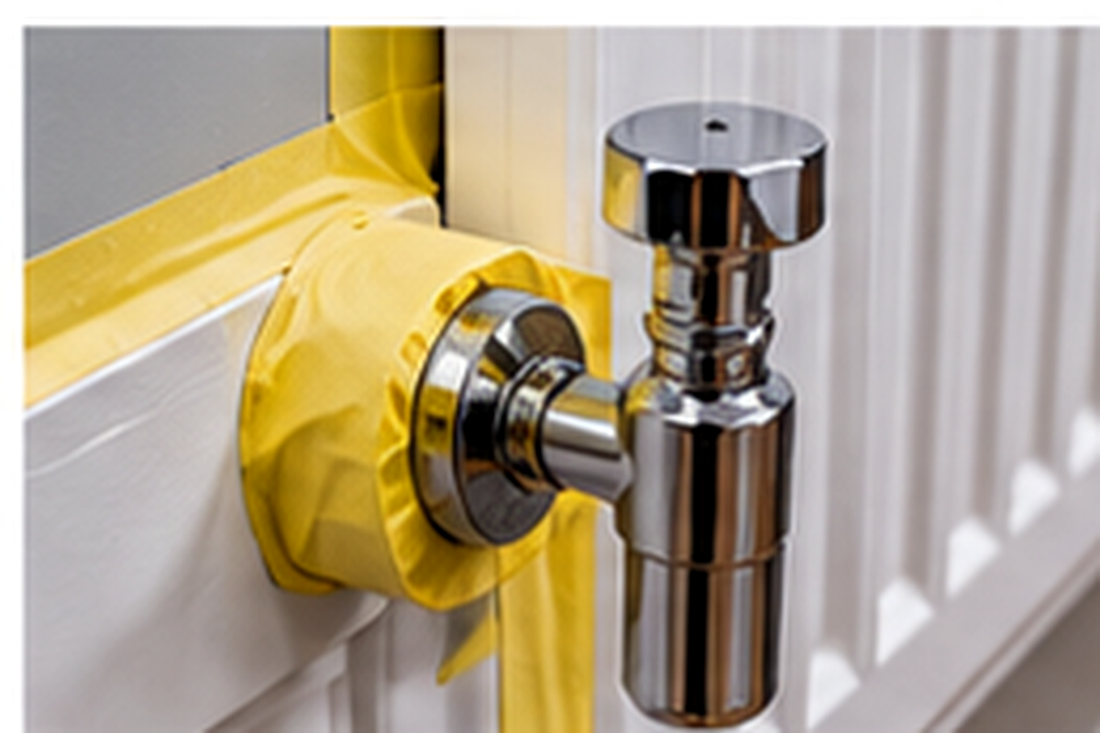

Mask valves, walls, floors and pipework
Mask everything that must remain unpainted, including valve mechanisms, threads, bleed screws, pipe connections, thermostatic heads and adjacent walls or floors.
Use enough protective sheeting to control overspray beyond the immediate radiator area.

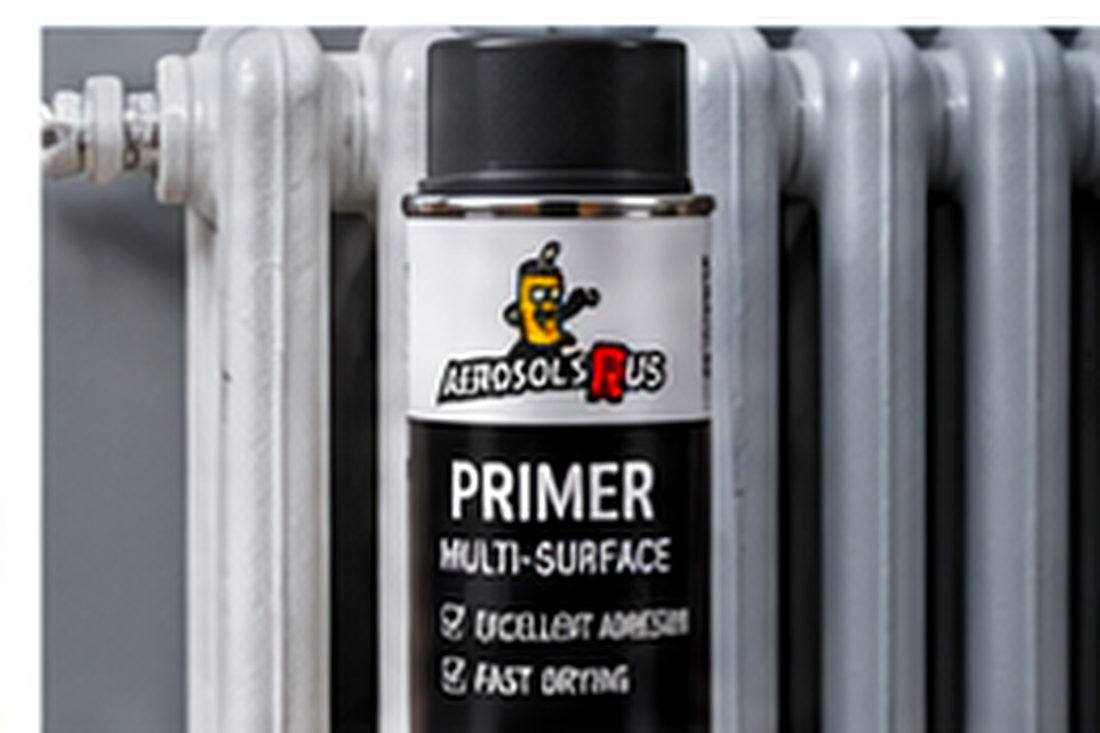

Prime exposed or difficult surfaces where required
Apply a compatible primer to prepared bare metal, rust repairs or difficult substrates only where the selected coating system requires it. Do not use high-build primer as a substitute for rust removal.
Follow the primer's application, drying and recoat instructions before colour.

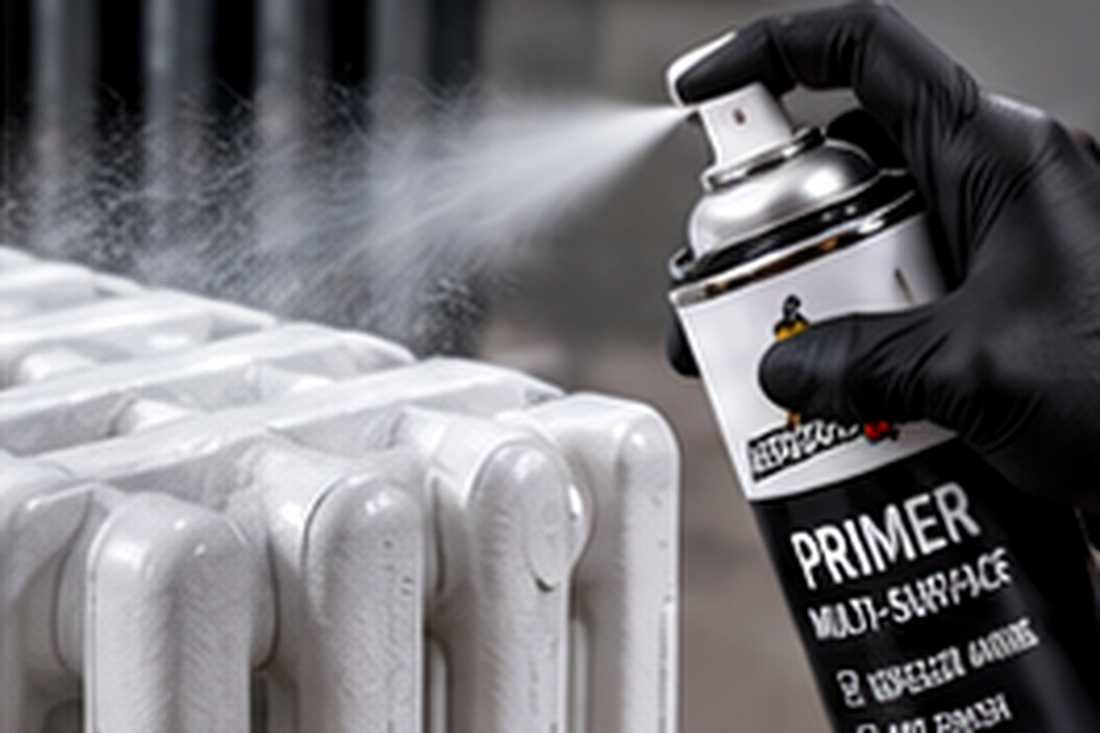

Condition, shake, test and apply controlled coats
Bring the aerosol and workpiece into the temperature range stated on the label, shake for the full specified time and test the spray pattern on a clean card.
Apply the stated coat system using smooth controlled passes. Follow the exact label or TDS for spray distance, overlap, flash-off and coat count rather than using a universal figure.

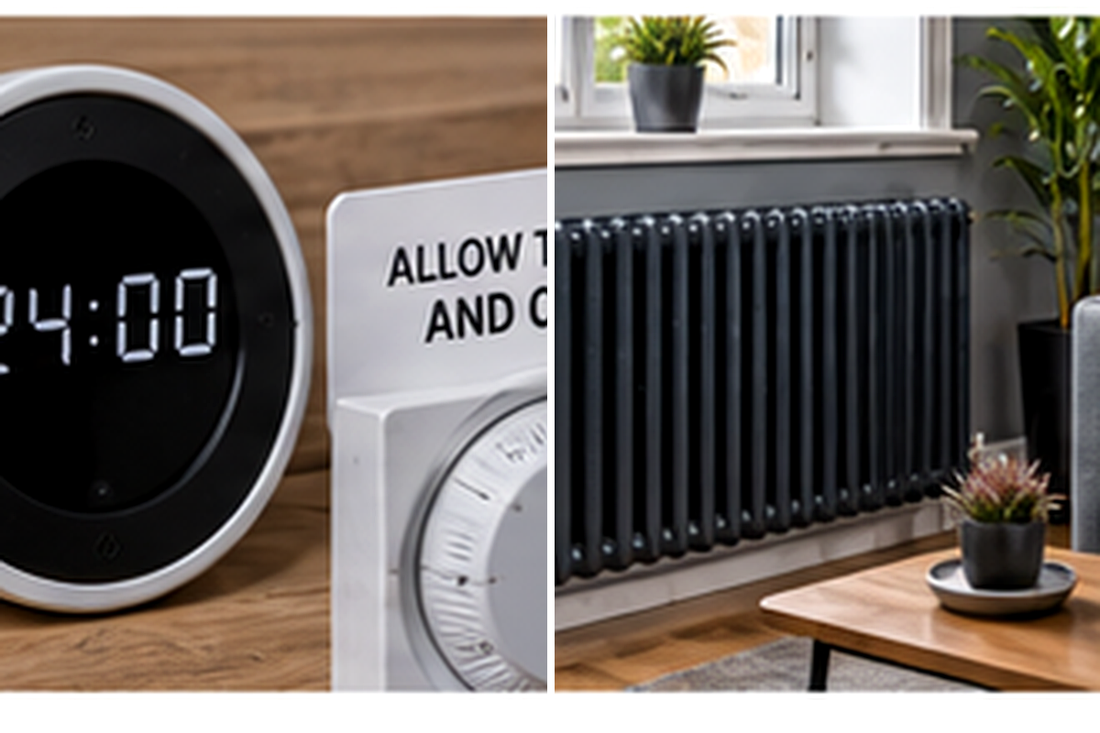

Allow the coating to dry and cure before heating
Observe the full drying, recoat and curing times stated for the product. Remove masking carefully only when the coating condition allows it.
Do not switch the heating back on until the coating has cured as instructed. If the product specifies a gradual return to service, follow that procedure.
Preparation routes at a glance
Choose the coating route for the surface
Radiators vary in material and factory finish. Treat the individual product label, Technical Data Sheet and Safety Data Sheet as the final specification, and test an inconspicuous area when the existing coating is unknown.
Sound factory or existing coatingClean thoroughly, abrade evenly to remove gloss and confirm compatibility before applying the chosen radiator coating.
Exposed bare steel or ironRemove corrosion and unstable coating, repair defects and use a compatible metal primer where the selected system requires it.
Cast-iron radiatorPay close attention to rust, pits, joints and deep profiles. Preparation and access normally take longer than on a flat panel radiator.
Aluminium radiatorIdentify the existing finish and use only a coating and adhesion route approved for aluminium or the factory-coated surface.
Unknown or powder-coated finishClean and test a hidden area first. Stop if the test shows lifting, softening, wrinkling or poor adhesion.
Stoves, boilers and very high-temperature equipmentA household radiator coating is not automatically suitable. Use only a specialist product explicitly approved for the operating temperature and appliance.
Important: Keep the radiator off and cold during application. Do not switch the heating back on until the coating has dried and cured in accordance with the exact product instructions.
Useful answers
Radiator painting questions
Do I need to prime the whole radiator?
Not necessarily. A sound compatible existing finish may only need cleaning and abrasion before recoating. Exposed bare metal, repaired rust, aluminium or other difficult surfaces may need the appropriate primer. Follow the exact coating-system instructions.
Can I spray the radiator while it is still fitted?
It can be possible when the radiator is cold and the room can be ventilated and protected properly. Access behind the radiator is more difficult, and valves, walls, floors and pipework need thorough masking. Any plumbing removal should be completed by someone competent.
How many aerosols will I need?
Quantity depends on radiator size, depth, number of panels, profiles, colour change, coat count and overspray. Use the AerosolsRus quantity calculator as a planning guide, then include a sensible allowance for complex shapes and the uninterrupted final coat.
Which finish should I choose for a radiator?
Matt, satin and gloss change the appearance and the visibility of surface defects. Choose from the finishes offered by the exact radiator product, consider cleaning and handling, and test the colour and sheen before completing the full radiator.
Can I use this process on a stove or very hot appliance?
No general radiator guide should be assumed suitable for a stove, boiler, exhaust or other high-temperature appliance. Use only a specialist product explicitly approved for the operating temperature and application.
Ready to transform your radiator?
Choose the colour and finish, confirm the substrate and preparation route, then order enough primer, radiator paint and masking materials to complete the job without interrupting the final coat.
