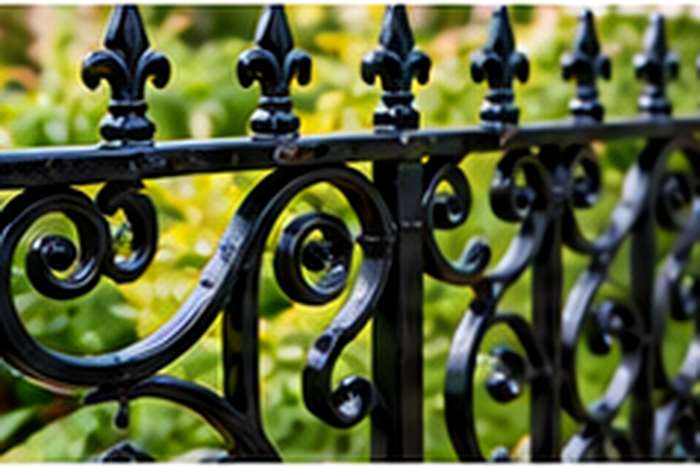

Wrought iron and mild steel
Bare or previously coated steel and wrought iron need complete grease removal, rust control and the approved anti-corrosion primer or direct-to-metal route.
Project Guides
How to Spray Paint Gates & Railings
Prepare and refinish compatible gates, railings and exterior metalwork using the correct cleaning, corrosion removal, masking, primer and weather-resistant coating system. Identify the metal and existing finish first, keep mechanisms and closing faces paint-free, and follow the exact product instructions throughout.
Project guide
Long-lasting metalwork starts with corrosion control
Gates and railings are exposed to rain, condensation, UV light, road contamination, impact and repeated handling. Metalwork that looks similar may be mild steel, wrought iron, cast iron, galvanised steel, aluminium or powder-coated metal, and each needs a compatible preparation route.
Repair unsafe metalwork, remove unstable rust and contamination, assess old coatings before disturbing them and use a primer and exterior topcoat approved for the exact substrate. The product label, TDS and SDS take priority over general advice.
Identify the metal and starting condition
What type of gate or railing are you preparing?
The metal, protective finish, corrosion, welds, fixings and exposure determine the cleaning, rust-removal, abrasion, primer and exterior topcoat route.

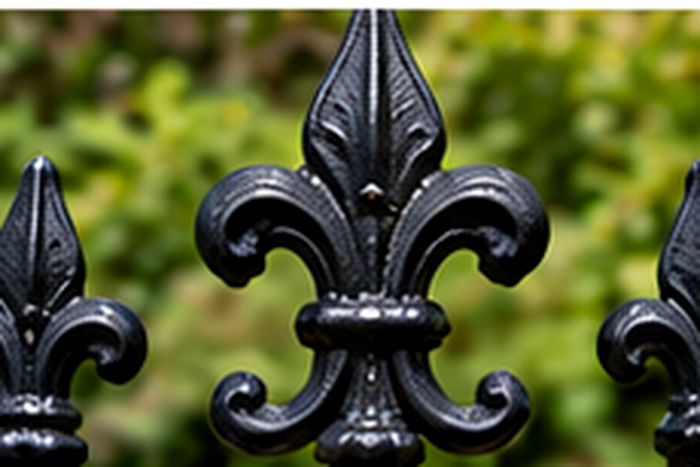

Cast iron and ornate metalwork
Cast texture, pits, scrolls and joints require careful access, corrosion removal and controlled coats that protect recesses without flooding detail.
New galvanised steel
New galvanising can carry oils or passivation residues and requires a cleaning and adhesion route specifically approved for new zinc-coated metal.

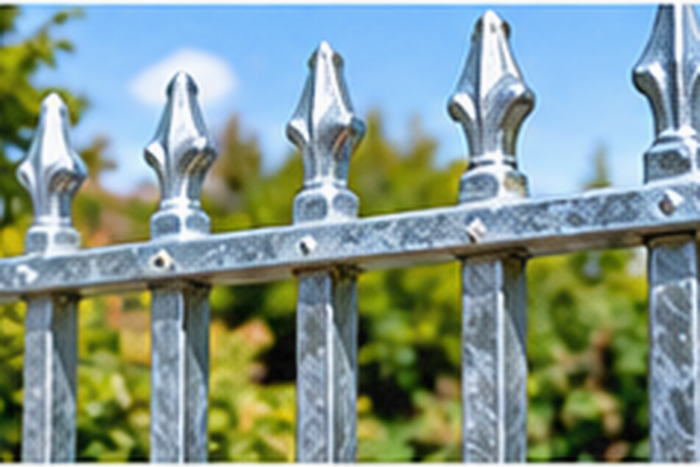

Weathered galvanised steel
Aged galvanising may show white corrosion and weathering. Stabilise and prepare it using the approved weathered-galvanised route rather than a bare-steel system.

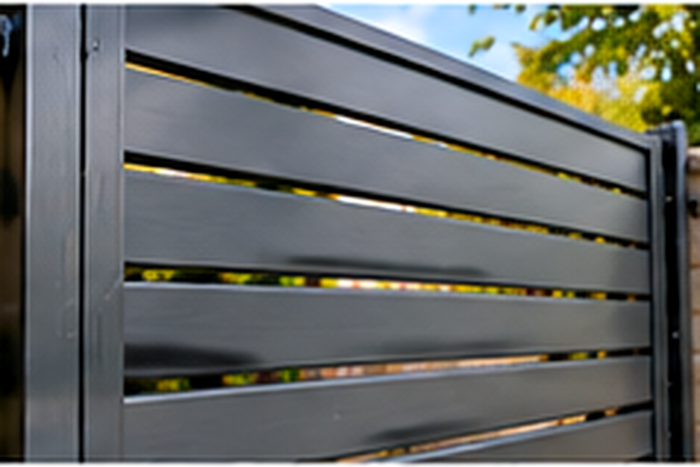

Aluminium and powder-coated metal
Bare aluminium, oxidation and sound powder coat require separate identification, cleaning and adhesion testing before the full item is coated.

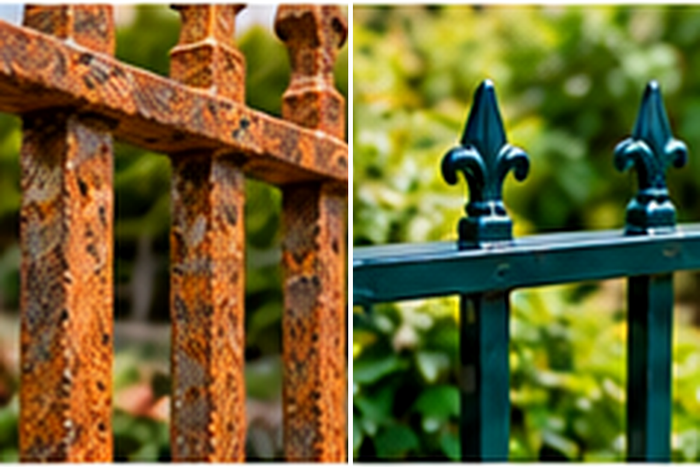

Existing paint, rust and weld repairs
Sound paint may be keyed and recoated, while flaking edges, corrosion, exposed metal and repaired welds need local preparation and compatible primer.
Preparation and product checks
What to confirm before spraying
Plan metal identification, cleaning, rust removal, masking, safe access, overspray control, coating compatibility, suitable weather, ventilation and PPE before opening an aerosol.

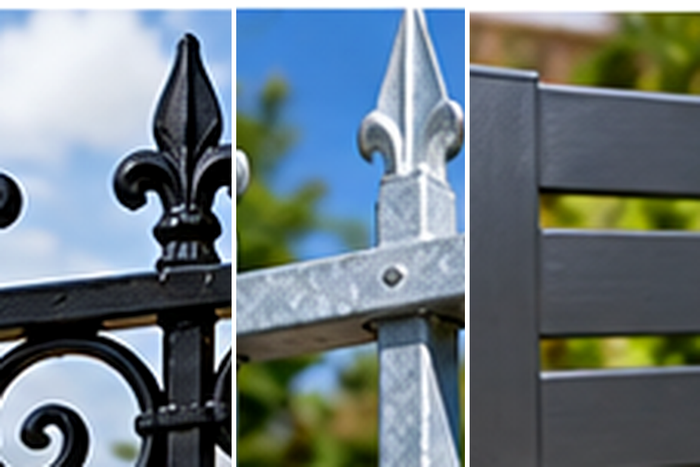

Metal and coating identification
Confirm mild steel, wrought iron, cast iron, galvanised steel, aluminium, powder coat, existing paint and any mixed-metal components.

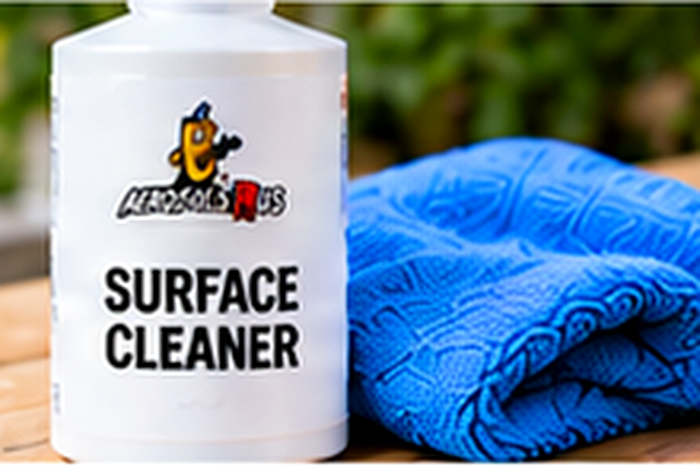

Cleaner and lint-free cloths
Use a compatible degreaser and fresh cloths to remove grease, road film, algae, polish, oil, silicone residue and dirt.

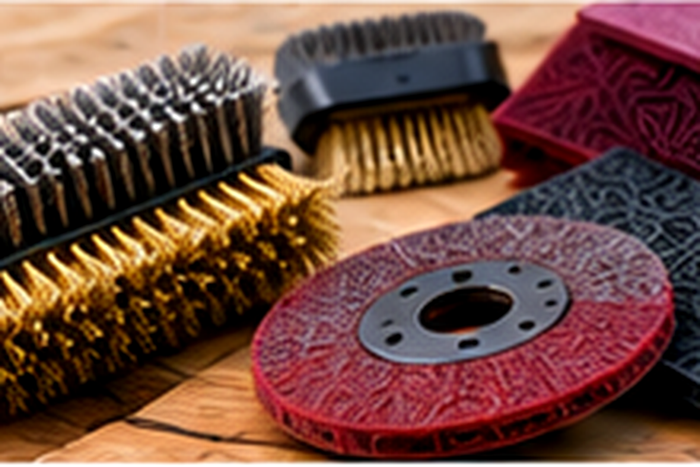

Scrapers, abrasives and wire brushes
Select tools that remove loose rust and failed paint without damaging sound metal, ornate detail, galvanising or sharp profiles.

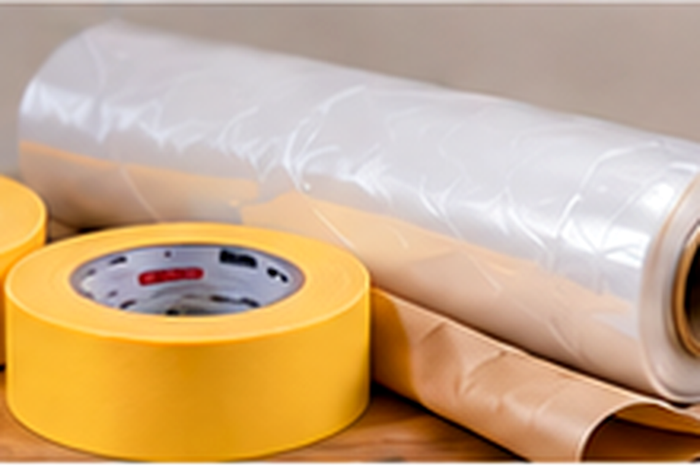

Masking and site protection
Protect masonry, walls, paving, plants, vehicles, neighbouring property and every moving, locking or electrical component from overspray.

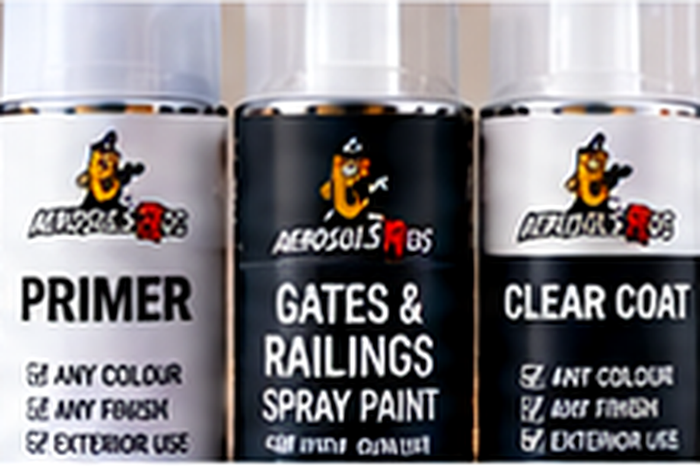

Compatible primer and exterior topcoat
Use the correct anti-corrosion, galvanised-metal or adhesion primer and a weather-resistant topcoat approved for the exact metal and exposure.
Weather, ventilation and PPE
Check temperature, humidity, wind, rain and direct sun; provide suitable ventilation, gloves, eye protection and respiratory protection required by the SDS.
Step-by-step
How to spray paint gates and railings
Work from metal identification and safety checks through cleaning, corrosion removal, preparation, controlled coating and a full cure before the gate or railing returns to service.

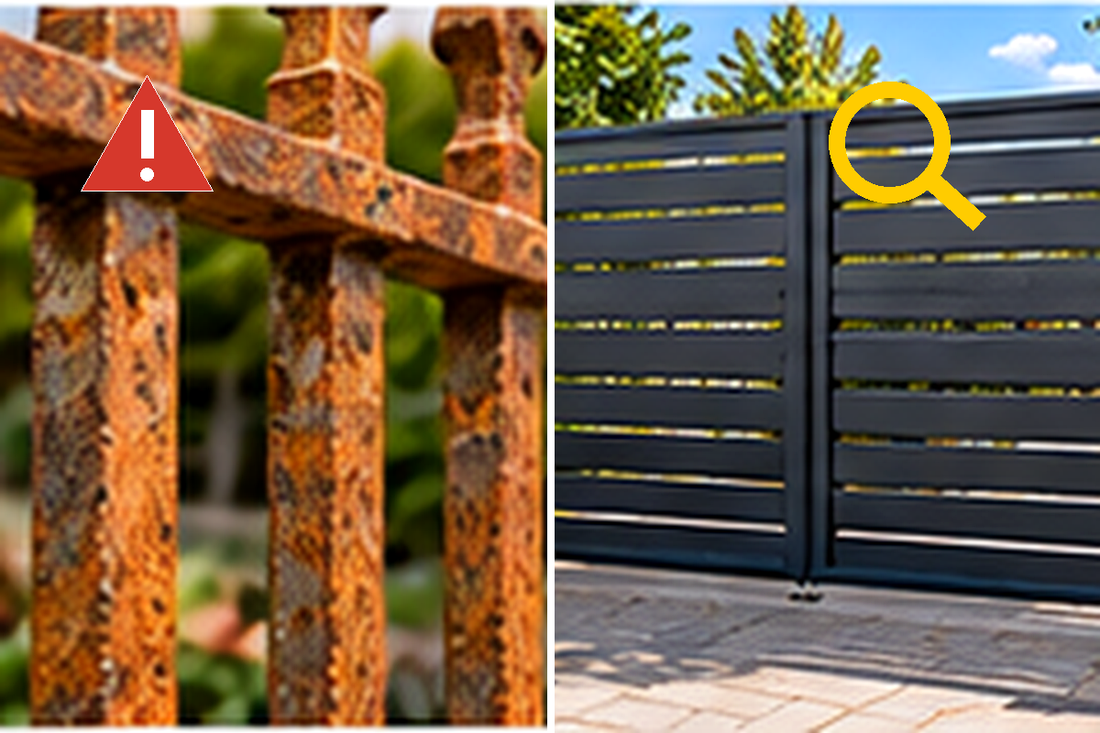

Inspect the metalwork and make it safe
Identify the metal and coating, then check corrosion, section loss, cracked welds, loose posts, sharp edges, fixings, hinges, locks and automated equipment. Isolate powered gates safely and arrange structural or electrical repairs before preparation begins.
Do not rely on paint to restore unsafe or severely weakened metalwork.
Clean and degrease thoroughly
Remove grease, road film, algae, dirt, oil, polish, silicone residue and other contamination using a cleaner compatible with the metal and coating system. Work into joints, scrolls, lower rails, welds and ground-level areas.
Use fresh lint-free cloths and allow every surface to dry completely.
Remove loose rust and failed coating
Remove loose corrosion, flaking paint and unstable repairs until the surface is sound. If the coating is old or its content is unknown, do not dry sand, blast or burn it without assessing the risk of lead and other hazardous substances.
Use controlled methods, contain debris and follow current product and safety guidance.

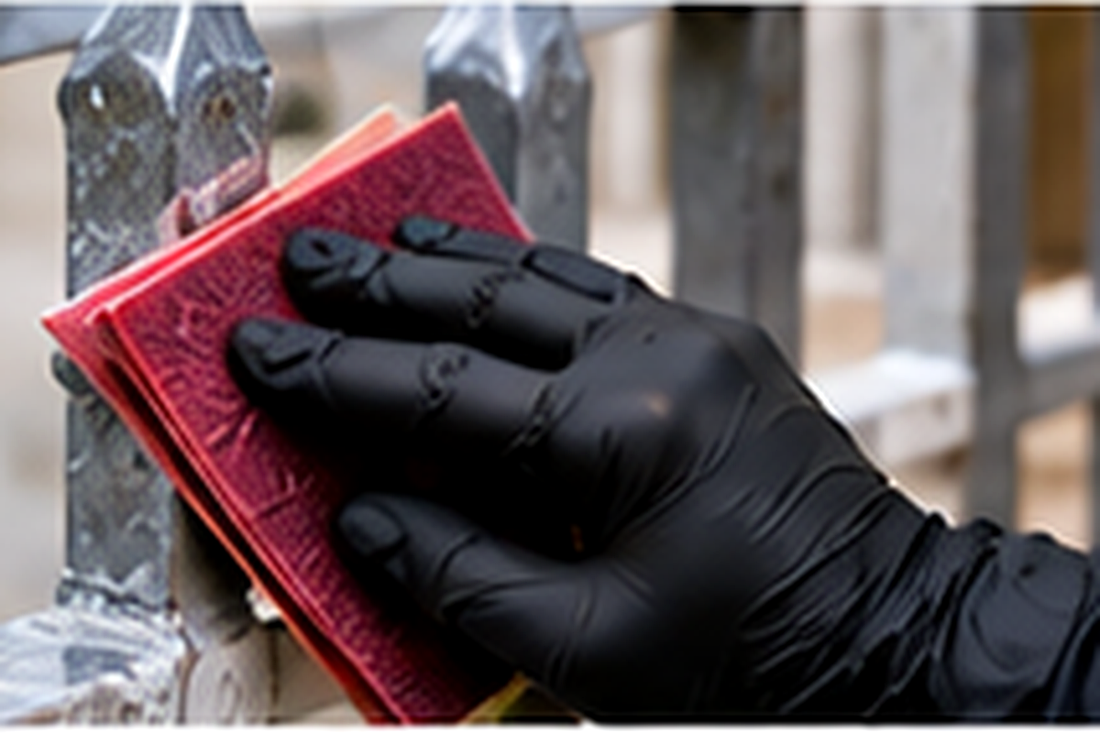

Feather edges and abrade sound surfaces
Feather the edges of sound remaining paint and abrade glossy compatible coating to create an even key. Prepare bare metal, cast texture, galvanising, aluminium and powder coat only by the method approved for that substrate.
Remove every trace of dust and re-clean where required.

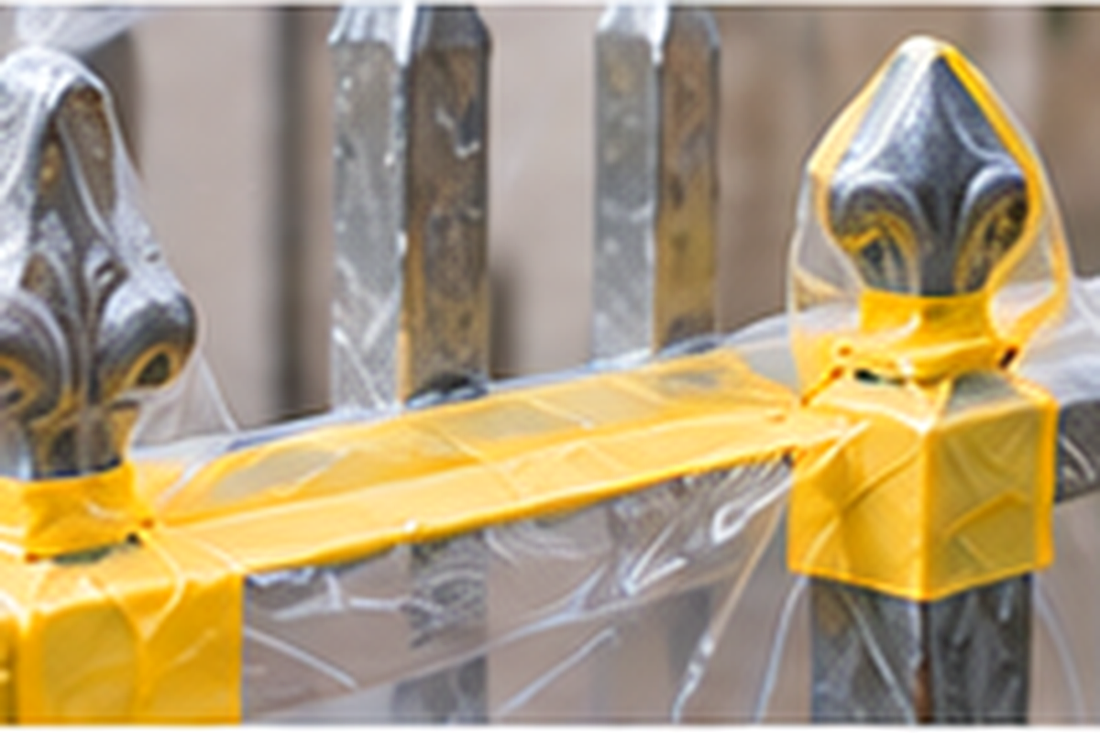

Mask mechanisms and protect the site
Mask locks, latch faces, hinges, bearings, rollers, tracks, motors, photocells, sensors, cables, earth connections, rubber stops and closing faces. Protect walls, masonry, paving, plants, vehicles and neighbouring property from overspray.
Plan wind direction, access and safe supports before spraying.
Test adhesion and prime where required
Apply the proposed system to a representative hidden area and allow it to dry as instructed. Stop if the old coating softens, wrinkles, lifts, reacts or shows poor adhesion.
Use the exact anti-corrosion, galvanised-metal, aluminium or adhesion primer only where the substrate and chosen system require it.
Condition, shake, test and apply controlled coats
Bring the aerosol and metalwork into the temperature range stated on the label, shake for the full specified time and test the spray pattern, colour and finish on a clean card.
Apply smooth controlled coats and follow the exact label or TDS for distance, overlap, coat count and flash-off. Coat edges, scrolls and recesses without flooding joints or mechanisms.

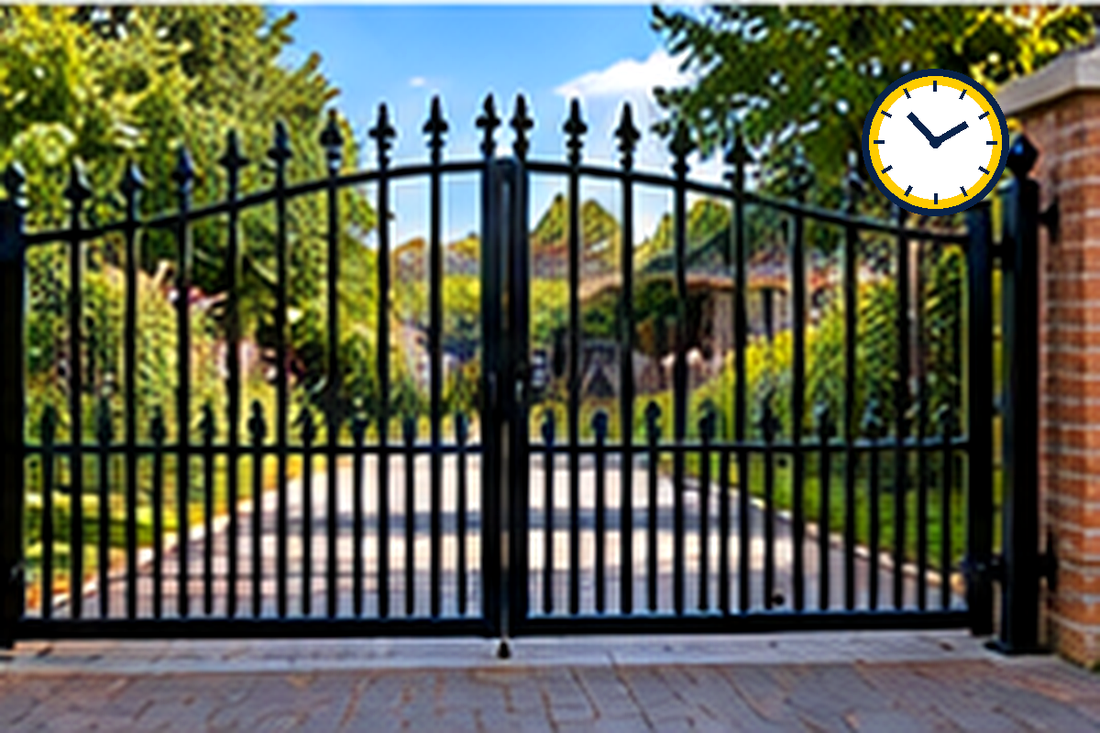

Allow a full cure before normal use
Observe the full drying, recoat and curing times before removing protection, operating locks, closing gates, reactivating automation or exposing the coating to rain and cleaning.
Open and close the gate gently when the product permits, checking that paint has not bridged any moving or sealing faces.
Preparation routes at a glance
Choose the coating route for the metal surface
Gates, railings and fencing can use several metals and protective finishes, so no single preparation route suits bare steel, cast iron, galvanised steel, aluminium, powder coat and old paint. Treat the current product label, Technical Data Sheet and Safety Data Sheet as the final specification, assess old coatings before disturbing them, and complete a representative adhesion and finish test before coating the full project.
Bare mild steel or wrought ironRemove mill contamination, rust and sharp burrs, abrade to the preparation standard required by the system and apply the specified anti-corrosion primer or direct-to-metal route before the exterior topcoat.
Cast iron and ornate metalworkClean deeply around cast texture, joints, scrolls and pits. Remove loose corrosion without damaging sound detail, then use a compatible corrosion-protection system that reaches recesses without flooding them.
New galvanised steelRemove storage residues, oils and passivation contamination as the coating system requires. Use only a primer or direct-adhesion product specifically approved for new galvanised metal.
Weathered galvanised steelRemove white corrosion, dirt and unstable material, rinse or re-clean where specified and use the approved route for aged galvanising. Do not treat it as ordinary bare steel.
Aluminium or powder-coated metalIdentify bare aluminium, oxidation and sound powder coat separately. Clean thoroughly and use an adhesion or primer route approved for the exact metal or existing finish.
Sound existing paint, rust and weld repairsCheck compatibility, feather sound edges and remove corrosion until the surface is stable. Prime exposed metal and repaired welds as the selected system requires before applying colour.
Unsafe structure or unknown old coatingPaint cannot restore severely thinned sections, failed welds, loose posts or unsafe fixings. Repair the structure first and assess old or unknown paint for lead and other hazards before sanding, heating or stripping.
Important: Do not coat hinges, bearings, lock cylinders, latch faces, rollers, tracks, automation motors, photocells, sensors, cables, earth or bonding points, identification plates, drainage paths, rubber buffers, moving joints or closing faces. Isolate automated equipment safely, control overspray beyond the immediate work area and keep people, pets, vehicles and plants away until the area is clear and the coating has cured.
Useful answers
Gates and railings painting questions
Do I need to remove all the old paint?
No. Firmly attached compatible paint may be cleaned, keyed and recoated after a hidden reaction and adhesion test. Loose coating, rust and failed repairs must be removed until the surface is stable. Assess old or unknown coatings before sanding or stripping.
Can I spray paint directly over rust?
Do not simply cover loose or active rust. Remove unstable corrosion, clean and prepare the metal, then use the anti-corrosion primer, rust-control or direct-to-metal system specified for the exact product and exposure.
Can galvanised gates and railings be spray-painted?
Yes, when the galvanising is identified and prepared correctly. New, weathered and previously painted galvanised surfaces can need different cleaning and adhesion routes, so use a product explicitly approved for the condition present.
Can aluminium or powder-coated railings be refinished?
Often, provided the metal and existing finish are sound, compatible and correctly prepared. Bare aluminium, oxidised aluminium and powder coat require different adhesion checks and primer routes. Complete a hidden test first.
How long before the gate can be used or exposed to rain?
Follow the exact drying, recoat and full-cure times on the product label or Technical Data Sheet. Keep mechanisms protected and avoid closing, locking, automated operation, cleaning or rain exposure until the coating has reached the required service cure.
